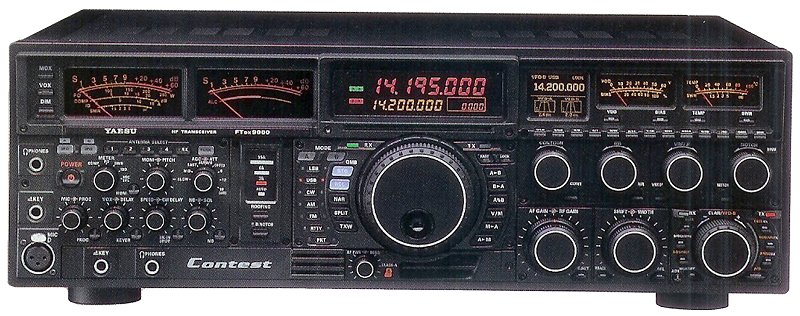

Yaesu FTDX9000 Contest
Specs are preliminary and may change.
| Type: |
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 50-54 MHz
RX: General coverage |
| Modes: |
AM/FM/SSB/CW/RTTY/Packet |
| RF Power output: |
Max 200 W (AM: 75 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
RX: Max ? A
TX: Max ? A |
| Aerial Input: |
50 ohms, 4*SO-239 (RX/TX) + 2*SO-239 (RX-only) |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? Kg |
| Manufactured: |
Japan, 2005-200x |
| Other: |
Balanced microphone jack (XLR). Data port. PS/2 keyboard jack.
Direct I/O sound card connections. 32-bit IF DSP.
IP3 better than +40 dBm! Twin identical RX. |
| Related Documents: |
|
|
